Digital Twin Reconnaissance Hub

Simulating UAV vision and flight in a unified pipeline — a home-built architecture fusing real flight-control firmware, an independent visual renderer, and an aerial object detector under one telemetry-synchronized log, built without a physical airframe.

Prototype / Validated — flight & vision layers independently confirmed

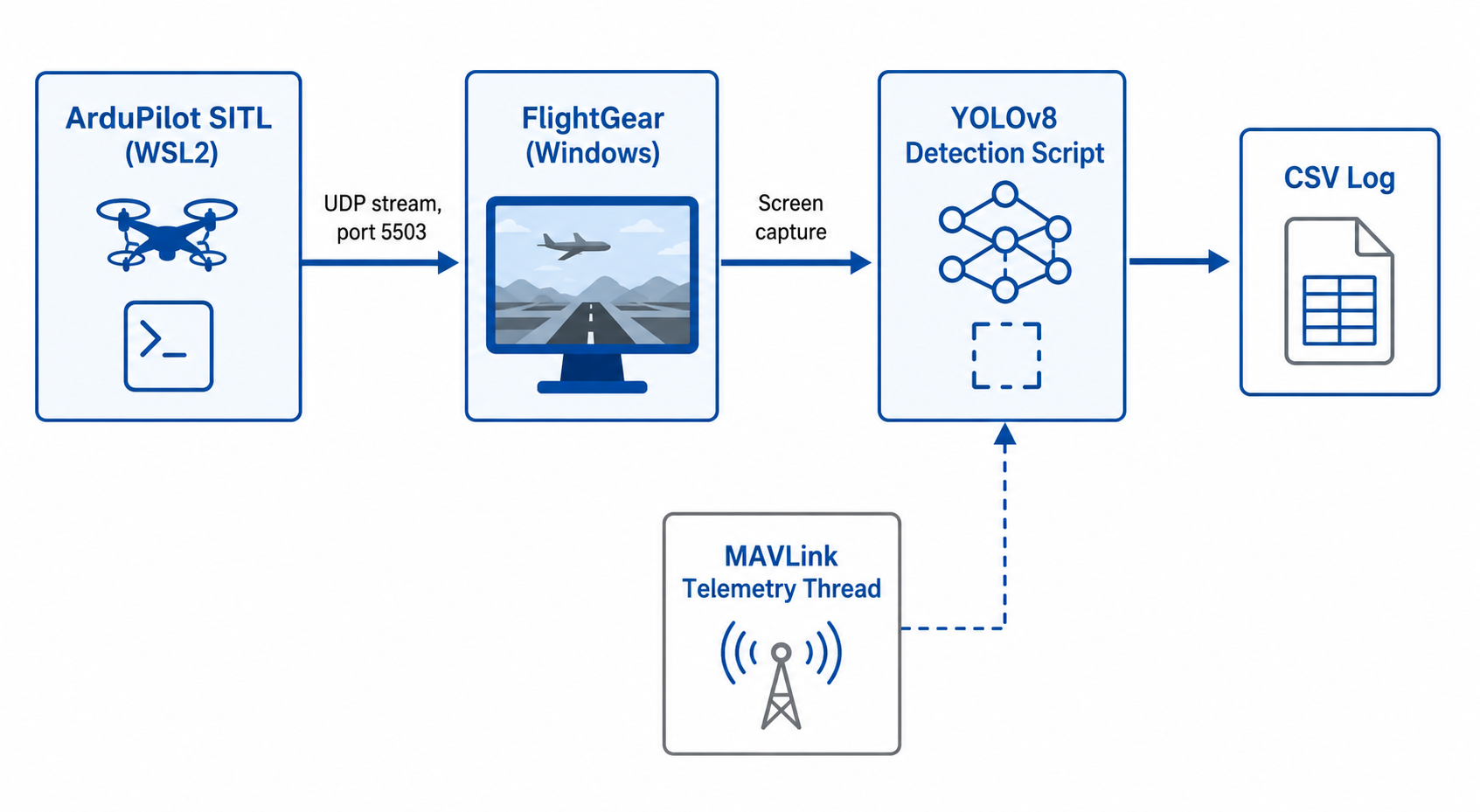

Pipeline architecture: ArduPilot SITL to FlightGear over UDP, screen-captured into a YOLOv8 detector, fused with a MAVLink telemetry thread into a unified CSV log
Fig. — SITL supplies real flight physics; FlightGear renders only. A screen-captured frame feed and an independent MAVLink telemetry thread converge at the point of detection.

Why simulate the whole mission, not just the airframe

Most flight-control validation and most computer-vision development happen in separate toolchains, tested in isolation from each other. This project asks a narrower question: what does a UAV's detector actually see along a real, physically-modeled flight path — before any hardware is procured, any battery is charged, or any airspace is requested.

The result runs the same ArduPilot flight-control firmware used on physical autopilots against a simulated vehicle model, with a VisDrone-tuned YOLOv8 detector reading the visual scene the vehicle is flying through, and every detection stamped with the vehicle's live GPS position via MAVLink.

Where it actually stands

Verified independently. Fusion into one continuous live feed is the current engineering phase — stated plainly, not smoothed over.

Flight Control
ArduPilot SITL built and flown — arm, takeoff, guided and circle modes confirmed on real flight-control firmware.
Aerial Detection
YOLOv8n, VisDrone-tuned, confirmed against real aerial imagery — pedestrians, vehicles, and more.
Telemetry Fusion
Background MAVLink thread streams live GPS position into the detection log without blocking capture.
Live Visual Sync
FlightGear's rendered onboard view and the detector's capture region — actively being hardened for continuous flight.

Built on

ArduPilot SITL FlightGear 2024.1 YOLOv8n VisDrone Dataset pymavlink MAVLink Python / OpenCV WSL2

Build log

A working record of the pipeline coming together — including the moments it broke, because that's the part that actually proves it was built, not assembled from a tutorial.

YOLOv8 VisDrone detections on a real aerial street photograph
Verified

Detector proven before integration

YOLOv8n fine-tuned on VisDrone correctly classing pedestrians, cars, and motorbikes on a real drone-view photograph — confirmed sound before any simulation wiring began.

FlightGear rendering the ArduCopter model in sync with MAVProxy console during takeoff
Verified

Flight-to-visual sync achieved

ArduPilot's own bundled quadcopter model rendered live in FlightGear, position and altitude driven entirely by SITL's real flight dynamics over a UDP FDM stream.

False positive car detections firing on desktop icons instead of the flight simulation
Bug, caught

The detector was watching the desktop

An uncalibrated screen-capture region briefly had YOLO reading desktop wallpaper instead of FlightGear's 3D scene — diagnosed and fully root-caused before it touched any logged data.

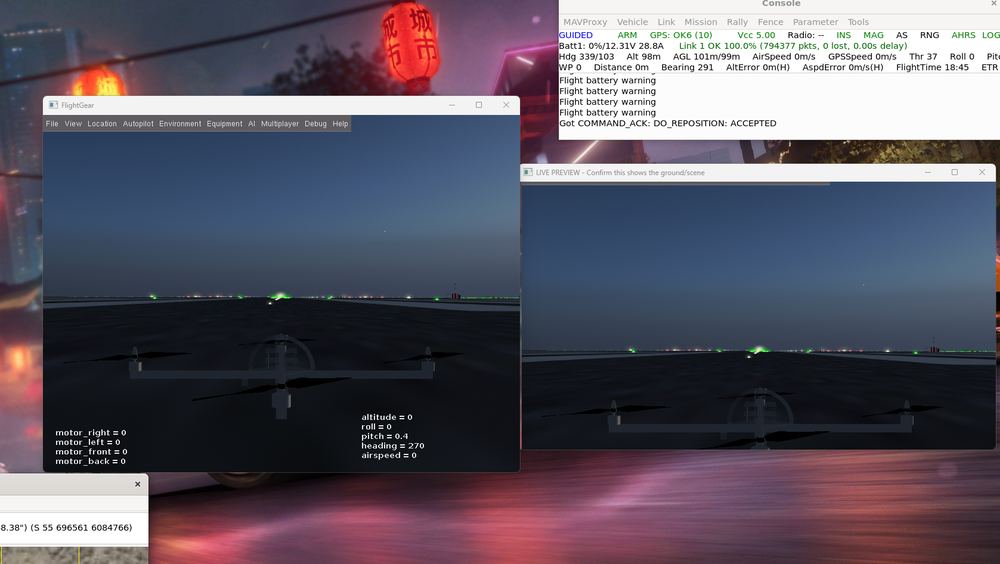

FlightGear window and live preview window showing identical, correctly captured content
Fixed

Capture region calibrated and proven

Fixed with programmatic window-geometry verification and a mandatory live preview — the captured feed and FlightGear's actual render now provably match, frame for frame.

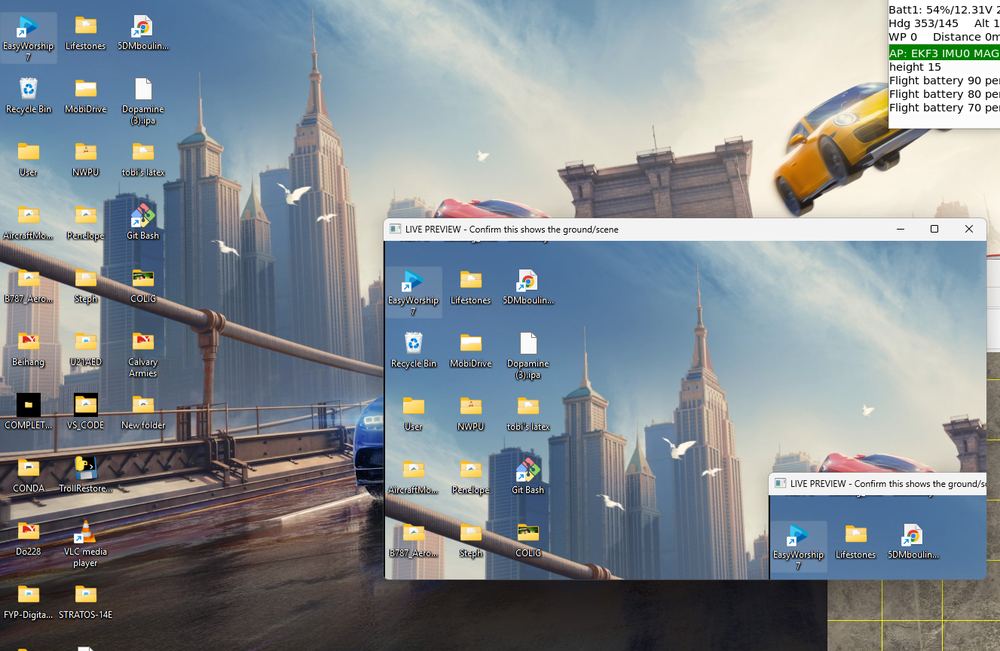

FlightGear altitude frozen at zero while MAVProxy console shows real altitude climbing
Bug, caught

Sync regression, diagnosed by cross-check

A stale background FlightGear instance silently held the telemetry port, freezing the render while SITL genuinely flew — caught by cross-checking FlightGear's own HUD altitude against MAVProxy's console.
